Azure Logic Apps: Flow Errors | Log in Dataverse w/ Links

/ Charles

The ask? Better report flow errors of Azure Logic Apps, like the better error reporting of a Power Automate cloud flow. But because this is an enterprise-level automation, generating emails could overwhelm the mailbox. Instead, log the run links in a Microsoft Dataverse table.

Figure 1 - Microsoft Dataverse Link column with Azure Logic App flow run links.
Figure 1 – Microsoft Dataverse Link column with Azure Logic App flow run links.

For ease, create a new Dataverse table to track these error runs. And during the creation process, include a New column of type “Single line of text” formatted as a “URL.”

Most of the other default settings are fine as-is but increase the Maximum character count. Something along the lines of 512 characters should be fine because Azure links are much longer than 100 characters:

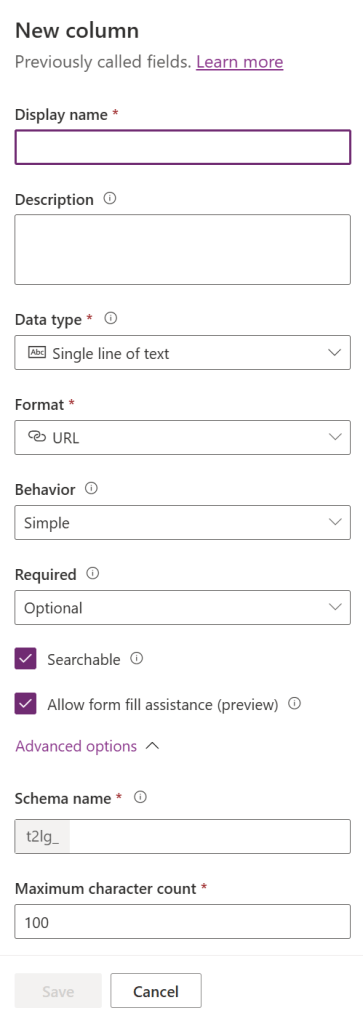

Figure 2 - Microsoft Dataverse New column formatted as a "URL."
Figure 2 – Microsoft Dataverse New column formatted as a “URL.”

Now, as with the Power Automate example, create a flow variable of type “Object,” then assign its Value using the workflow() expression, returning “all the details about the workflow itself during run time.”

Figure 3 - Azure Logic Apps flow variable of type object. Default value is workflow() expression.
Figure 3 – Azure Logic Apps flow variable of type object. Default value is workflow() expression.

Several of the returned workflow() details are used to build the URL for the Azure Logic Apps flow run, but here, these values are also encoded:

  • variables(‘flowObj’)[‘id’]
  • variables(‘flowObj’)[‘location’]
  • variables(‘flowObj’)[‘run’][‘id’]
Figure 4 - Azure Logic Apps encodedUriComponent() expression for flow id.
Figure 4 – Azure Logic Apps encodedUriComponent() expression for flow id.
Figure 5 - Azure Logic Apps encodedUriComponent() expression for flow location.
Figure 5 – Azure Logic Apps encodedUriComponent() expression for flow location.
Figure 6 - Azure Logic Apps encodedUriComponent() expression for flow run id.
Figure 6 – Azure Logic Apps encodedUriComponent() expression for flow run id.

Plugging in the encoded values from above, id is the absolute identifier of the flow. This includes the path of the Azure subscription, name of the flow’s resource group and the flow’s name. The location is the region of the flow, which may differ from the subscription and resource group. Lastly, the runId is the instance of the flow run. Formatted as a URL structure, this dynamic link is written to Dataverse, logging flow runs for auditing:

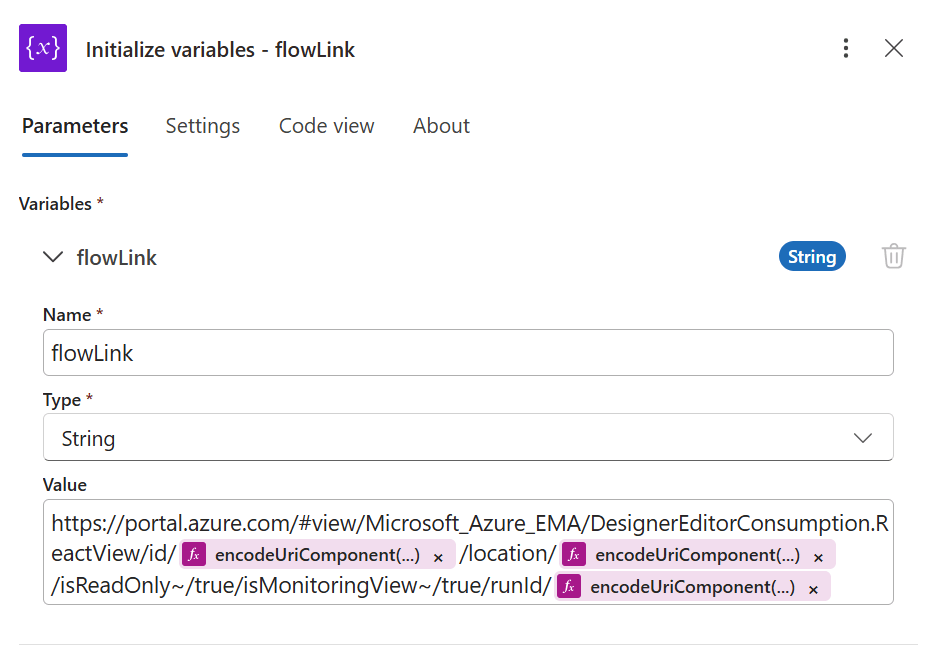

Figure 7 - Azure Logic Apps flow variable of type "String." This variable is a dynamic build of the flow run's instance.
Figure 7 – Azure Logic Apps flow variable of type “String.” This variable is a dynamic build of the flow run’s instance.

Conclusion:
Azure Logic Apps and Power Automate are closely related. If it’s possible in Power Automate cloud flows, then it’s very likely possible, if not easier and more scalable, with Azure Logic Apps.
