Power Automate: Cloud Flow | Filter Datasets Better


The ask, improve a long running cloud flow’s performance. It has a Get files (properties only) action querying 2,000 recent items which are filtered using a Condition block. Because the library already has 100K+ items, OData filters can be hit or miss, so the maker is iterating each returned item, causing the flow loop to run for 9+ minutes:

Figure 1 - Power Automate cloud flow with Get files (properties only) action and long-running Apply to each loop.
Figure 1 Power Automate cloud flow with Get files (properties only) action and long-running Apply to each loop.

Fortunately, to improve this flow, the main logic doesn’t need to change much. It will still query the most recent 2,000 library items and delete the default the .txt files created with the document sets using the Send an HTTP request to SharePoint action, but a tweak is necessary to address the laborious processing:

Figure 2 - Power Automate cloud flow with Condition action and Send an HTTP request to SharePoint action.
Figure 2 Power Automate cloud flow with Condition action and Send an HTTP request to SharePoint action.

That tweak, add a Filter array action to the flow. Pass in the body/value of the Get files (properties only) output into this new action, then specify how the array should be filtered. Because it needs to output only the default .txt files, the filter will target the .txt extension. Finally, pass the output of this filter action to the Apply to each control:

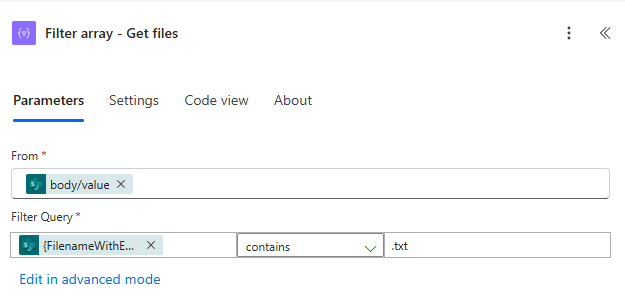

Figure 3 - Power Automate cloud flow with Filter array action, returning files matching a file extension.
Figure 3 Power Automate cloud flow with Filter array action, returning files matching a file extension.

Now, with the Filter array action, the flow loop goes from 9+ minutes down to 8 seconds, only iterating the .txt files, not all 2,000 items:

Figure 4 - Power Automate cloud flow with improved performance.
Figure 4 Power Automate cloud flow with improved performance.

Conclusion:
If the cloud flow has a GET large array action, an Apply to each loop control, and a Condition block, but no Filter array action, then there is likely room for improvement. Not every loop will have such a sizable boost in performance, but every bit helps in overall efficiency.
