Power Automate: Ticketing System | Microsoft Teams + SharePoint Online [managed solution]

/ Charles

Some time ago, I architected a low-cost “service management”-esque app combining Microsoft Teams, SharePoint Online (SPO), and Power Automate. As a Power Platform low-code solution, I could piece everything together and demo a working ticketing system in a few hours.

However, I never packaged the deliverable as a Power Platform managed solution, adhering to proper application lifecycle management. Because I have environments provisioned for development (DEV), quality assurance testing (QAT), and production (PROD), I should have created similar channels in my team:

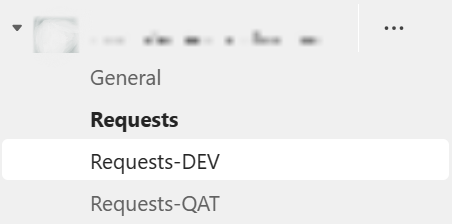

Figure 1 - Microsoft Teams channels for DEV, QAT, and PROD.
Figure 1 – Microsoft Teams channels for DEV, QAT, and PROD.

Just as with the production “Requests” channel, select the ellipsis menu and choose Get email address. Each channel will have its own unique email address, as well as a newly created folder in the SPO document library for received files. Also, choose Get link to channel, and save the link for each channel:

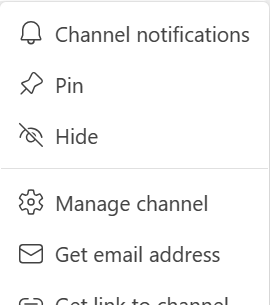

Figure 2 - Microsoft Teams ellipsis menu items.
Figure 2 – Microsoft Teams ellipsis menu items.

Okay, that wraps up part one of the deliverable. For testing, I decided to send a dummy email to the DEV channel:

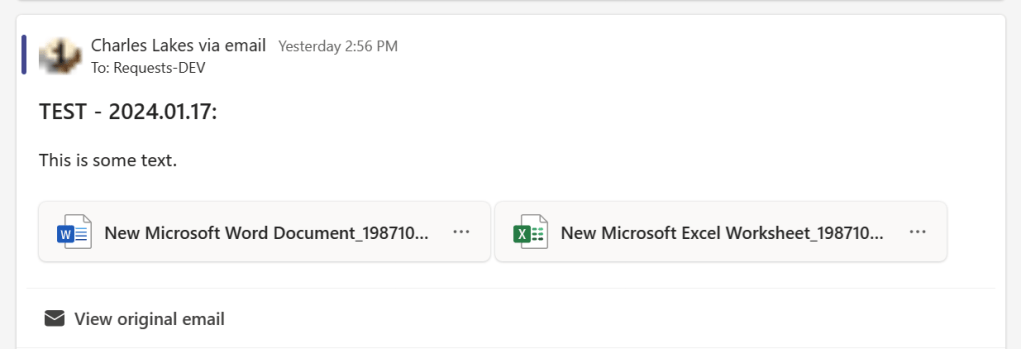

Figure 3 - Test email for the Microsoft Teams DEV channel.
Figure 3 – Test email for the Microsoft Teams DEV channel.

After the message posts to the team channel, I can confirm that the .eml file has been successfully uploaded to SPO in the background. Two things to note:

(1) Uploaded files are suffixed with unique Id values, distinguishing them from other received files, preventing duplicates.

(2) However, emails share suffix values with their attachments, making it easier to group related files:

  • E.g., 1987108616
Figure 4 - SharePoint Online document library with email message and email attachments.
Figure 4 – SharePoint Online document library with email message and email attachments.

Okay, now I should create my managed solution. From the Power Apps portal, select Solutions and create a new solution, include the necessary connection references, then add an environment variable for the Microsoft Teams channel Id. Using an environment variable, I can change the Id in QAT and PROD, ensuring the Power Automate cloud flow points to the correct channel.

In “Classic Teams”, the channel Id references Skype:

19%3B1364c7d57125417681147ae487764607%40thread.skype

Extracting the Id and decoding the value, it becomes:

19:1364c7d57125417681147ae487764607@thread.skype

However, in “New Teams”, the channel Id looks like:

19%3A54e82d5e7eec4ee98691d3bae39e2ad8%40thread.tacv2

And decoded, it becomes:

19:54e82d5e7eec4ee98691d3bae39e2ad8@thread.tacv2

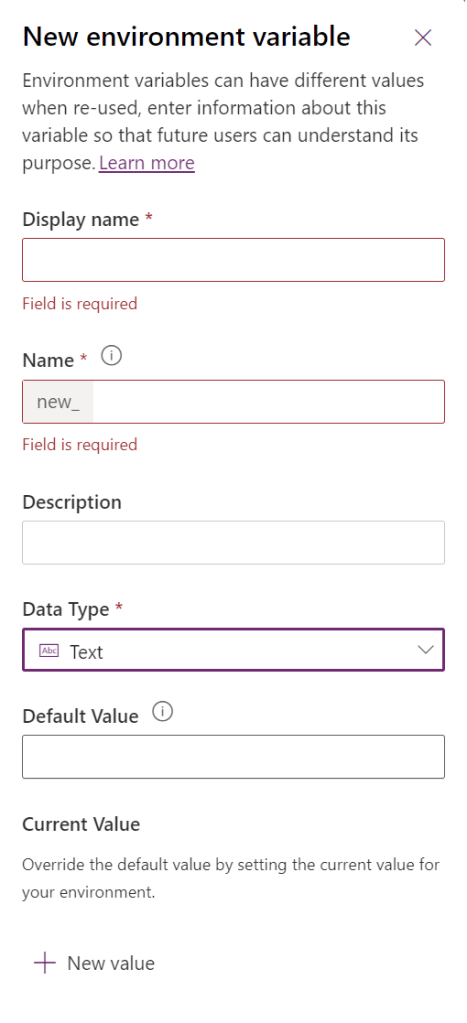

Figure 5 - Power Platform solution open to create new environment variable as a string.
Figure 5 – Power Platform solution open to create new environment variable as a string.

Finally, add a new Power Automate cloud flow to the solution. Ultimately, the flow will use three connection references:

  • SharePoint Online
  • Microsoft Teams
  • SendGrid (or service for email)
Figure 6 - Power Automate cloud flow connection references.
Figure 6 – Power Automate cloud flow connection references.

Kicking things off, this cloud flow uses the Microsoft Teams trigger for a new channel message. Specify the team, but use the environment variable for the channel Id:

Figure 7 - Power Automate cloud flow trigger: Microsoft Teams new channel message.
Figure 7 – Power Automate cloud flow trigger: Microsoft Teams new channel message.

Not a required step, but helpful nonetheless, I created an object variable called tempObj after my trigger. Here, I’m storing the data body of the Microsoft Teams trigger output for use later in the flow:

Figure 8 - Power Automate object variable storing trigger output data.
Figure 8 – Power Automate object variable storing trigger output data.

Onward to the remaining cloud flow logic. This process is triggered whenever an email is received because it posts a message to the target Microsoft Teams channel. From newly posted messages, filter the attachments and get the .eml file, which is helpful for populating the SPO list item fields. After the list item is created, filter and iterate the remaining attachments, then add them as list item attachments:

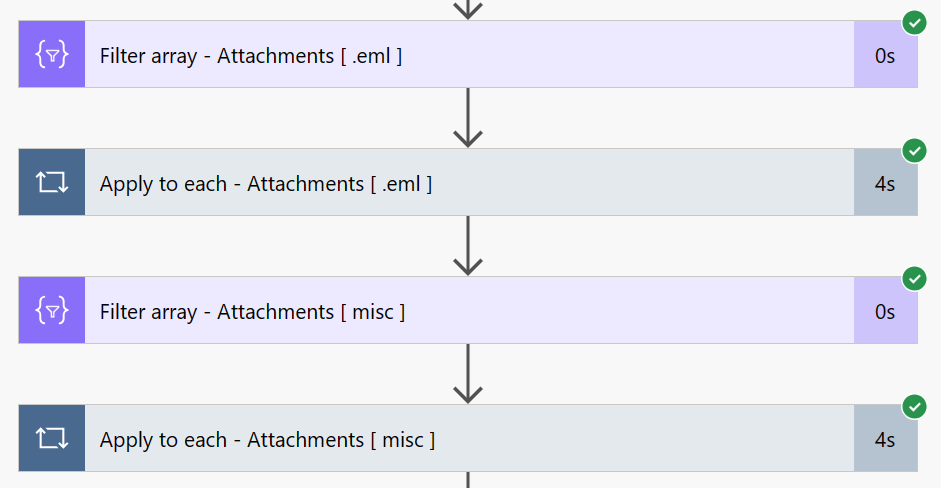

Figure 9 - Power Automate logic to process email message and email attachments.
Figure 9 – Power Automate logic to process email message and email attachments.

Add the Filter array control and get the .eml file, using “ends with” as the condition, which checks for the file extension. To get the regular attachments, just negate the condition:

Figure 10 - Power Automate logic to filer on .eml file extension.
Figure 10 – Power Automate logic to filer on .eml file extension.

When processing the remaining attachments, and making it easier for end-users to work with the list items, I get the contents of each, then add them as attachments to the SPO list item:

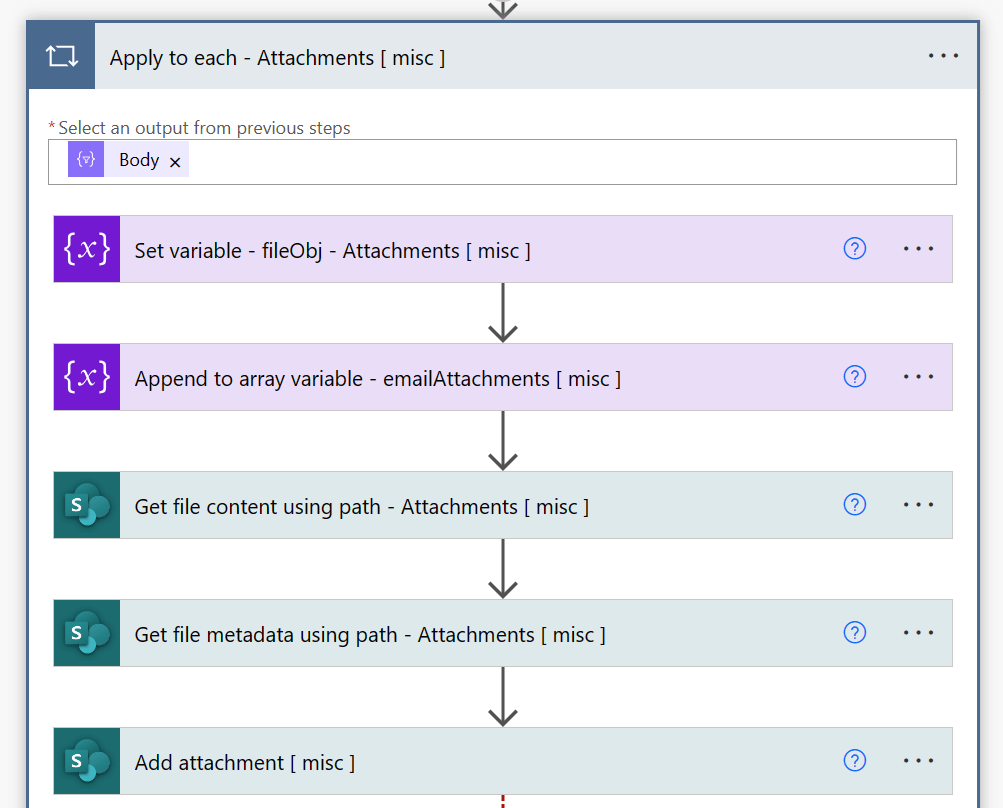

Figure 11 - Power Automate cloud flow logic to add email attachments as SharePoint Online list item attachments.
Figure 11 – Power Automate cloud flow logic to add email attachments as SharePoint Online list item attachments.

To add an attachment, provide the target SPO site address, target site list, the target item Id, name of the attachment, and the content of the attachment:

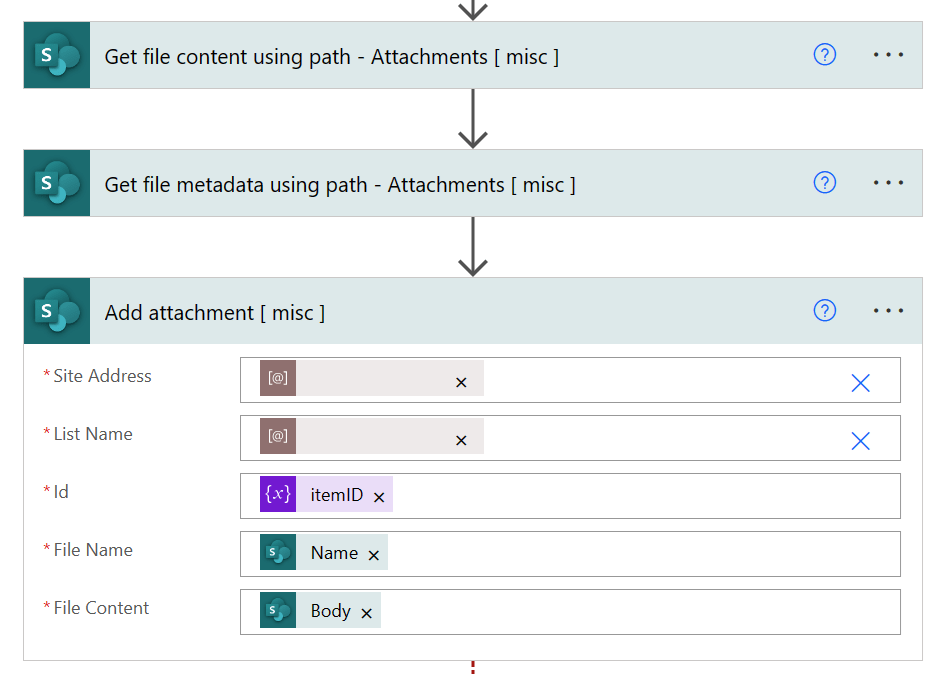

Figure 12 - Power Automate cloud flow logic to add email attachments as SharePoint Online list item attachments, using solution connections.
Figure 12 – Power Automate cloud flow logic to add email attachments as SharePoint Online list item attachments, using solution connections.

Finally, test again. The cloud flow is pointing to DEV, but the solution can be deployed to QAT, then PROD. Just remember to update the environment variable value in each deployment. The managed solution has connection references, an environment variable for the Microsoft Teams channel Id, and a Power Automate cloud flow.

Conclusion:
Packaging the app as a managed solution adheres to better application lifecycle management. This way, I’m able to slowly introduce enhancements without worrying about crashing the PROD app.
